RayNeo X3 Pro AR Glasses

See the world in a whole new way and keep information, entertainment, and AI support always in front of your eyes – with RayNeo X3 Pro glasses, everyday life takes on an augmented reality dimension. The full-color AR display gives the impression of a 43-inch floating screen, offering 16.77 million colors and exceptional readability in all conditions. The ultralight 76 g design ensures all-day comfort, while the powerful Qualcomm Snapdragon AR1 Gen 1 chip and always-on Google Gemini AI let you use navigation, translation, recording, and apps seamlessly without reaching for your smartphone.

Next-generation full-color AR imaging
At the core of the glasses is the proprietary Firefly Optical Engine – an ultra-compact 0.36 cm³ optical module capable of displaying 16.77 million colors at up to 6,000 nits of brightness. Combined with the precision-made RayNeo Waveguide, the image is clear, free from reflections or rainbow effects, and the 43-inch virtual screen naturally “floats” in the user’s field of view.

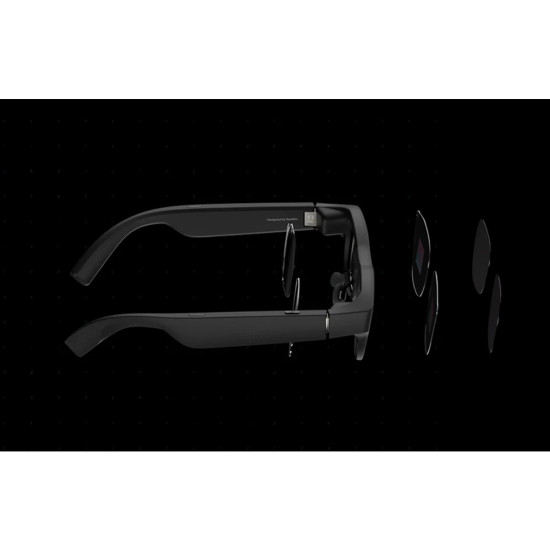

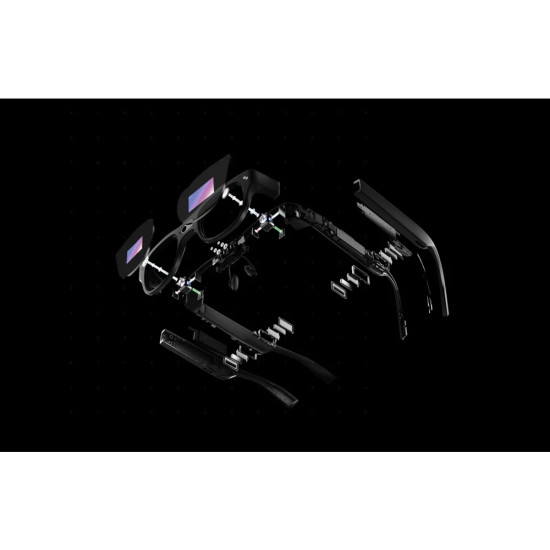

Lightweight design, ergonomics, and vision correction
Thanks to 11 design optimizations and the use of magnesium alloy and aerospace-grade aluminum, the X3 Pro weighs only 76 grams while remaining highly durable. The Super-Fit Optics system enables myopia correction, a wider field of view, and a slimmer lens profile. Interchangeable nosepieces and the ability to fit corrective lenses ensure comfort even during long periods of use.

AI and barrier-free communication
The glasses run on RayNeo AIOS with integrated Google Gemini 2.5, ready to assist without any setup – simply say “Hey RayNeo.” Features such as meeting transcription, call summaries, smart tips, and learning modes make the X3 Pro a personal assistant and secretary available anytime. The RayNeo X3 Pro supports real-time translation in 14 languages, with first-word delay under 1 second (full translation in as little as 2.1 seconds) and efficiency exceeding 90% even in noisy environments. Text and audio are displayed directly in the field of view, eliminating the need to reach for your phone. Control can be performed via touch, voice, or wrist gestures using an Apple Watch, allowing seamless interaction with the AR interface.

Imaging, spatial awareness, and navigation
Two RayNeo Image Plus cameras capture the environment: the main Sony IMX681 RGB camera (12 MP) can take 4K photos and 3K video from the user’s perspective, complemented by a black-and-white OV spatial camera for environmental and motion analysis. With 6DoF and SLAM support, the glasses recognize the user’s position in space, ensuring AR elements remain stable and respond naturally. These capabilities support Creator Mode for developing and testing AR applications using Unity ARDK and Android ARDK.

Performance and connectivity
The Qualcomm Snapdragon AR1 Gen 1 (4 nm) platform ensures smooth performance, low power consumption, and stable Android app operation. Wi-Fi 6 and Bluetooth 5.3 provide fast data transfer, while the battery allows up to 5 hours of recording, 3 hours of music listening, or 36 minutes of video playback. Full charging takes only 38 minutes, even during use.

Included
• RayNeo X3 Pro glasses
• Charging cable
• Nose cap
• Cleaning cloth and carrying case
• Quick start guide and user manual
• Example corrective lenses

Technical Specifications

• Manufacturer: RayNeo

• Model: X3 Pro

• Product type: AI + AR (binocular, full-color) glasses

• Display: MicroLED + diffractive waveguide (RayNeo Firefly Optical Engine)

• Display resolution: 640 × 480 px

• Colors: 16.77 million

• Refresh rate: 60 Hz (adaptive)

• Brightness: 3,500 nits (average), up to 6,000 nits (peak)

• Field of view (FOV): 30°

• Operating system: RayNeo AIOS

• AI support: Google Gemini (Always-On)

• Processor (SoC): Qualcomm Snapdragon AR1 Gen 1

• RAM: 4 GB

• Internal memory: 32 GB

• Camera system: RayNeo Image Plus (RGB camera + spatial camera)

• RGB camera: Sony IMX681, 12 MP, f/2.2, 16 mm ultra-wide

• Image quality: 4K photos, 3K video

• Spatial camera: OV, black-and-white, 6DoF and SLAM support

• Audio: Dual Opposing Acoustic Chamber

• Microphones: 3 × directional microphones (Narrow Beamforming)

• Connectivity: Wi-Fi 6 (2.4 / 5 GHz), Bluetooth 5.2, USB 2.0

• Sensors: Accelerometer, gyroscope, magnetometer, light sensor, wearable sensor

• Controls: Touch (5-dimensional), voice, smartphone Air Mouse, Apple Watch

• Apple Watch support: Series 7 and later

• AI translations: Yes – 14 languages, translation time approx. 2.1 seconds

• Battery: 245 mAh

• Charging time: approx. 38 minutes (USB-C, can charge during use)

• Dimensions: 153.16 × 45.65 × 168.6 mm

• Weight: 76 ±1 g
