MOZA Racing AS019 MRP Rudder Pedals

The MOZA MRP Rudder Pedals combine precision engineering with a robust metal frame and high-grade linkage system, ensuring long-lasting durability and consistent performance under heavy use. Adjustable pedal angles, customizable centering force, and optional damping provide tailored control for every flying style, while high-resolution Hall sensors deliver smooth, accurate braking and responsive rudder input. The pedals are designed for both flight simulation enthusiasts and demanding users flying a wide range of aircraft — from general aviation planes to commercial airliners and helicopters.

Key Features

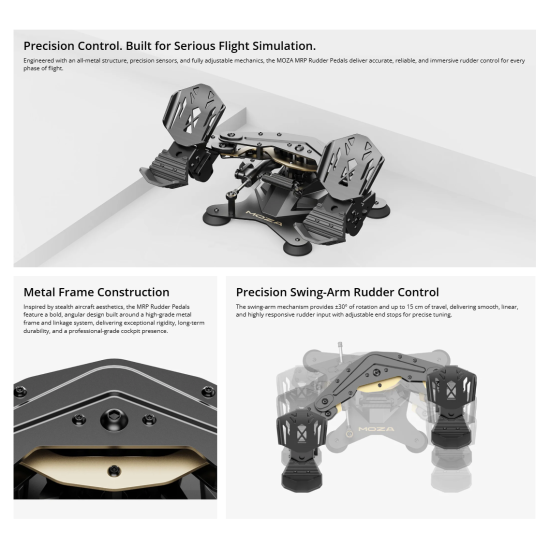

• Bold, angular metal frame and linkage system inspired by stealth aircraft aesthetics
• Swing-arm mechanism with ±30° of rotation and up to 150 mm of travel for smooth, precise rudder input
• Adjustable end stops for precise tuning

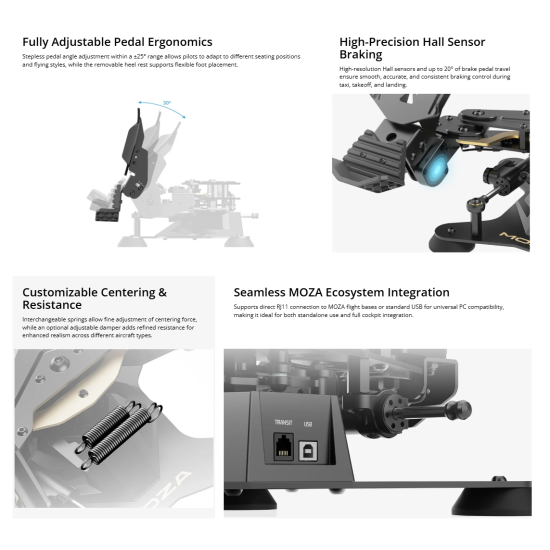

• Stepless pedal angle adjustment within a 0°–30° range to adapt to different seating positions and flying styles
• Removable heel rest for flexible foot placement
• High-resolution Hall sensors for rudder rotation and braking
• Up to 20° of brake pedal travel for smooth, consistent braking during taxi, takeoff, and landing
• Interchangeable springs for fine centering-force adjustment
• Optional adjustable damper for added realistic resistance (sold separately)
• Direct RJ11 connection to MOZA flight bases or standard USB for universal PC compatibility
• Non-slip rubber pads and mounting holes compatible with aluminum cockpit profiles

Technical Specifications

• Platform: PC
• Dimensions: 354 × 518 × 264 mm
• Weight: 8.0 kg
• Housing material: Aluminum alloy
• Swing arm material: High-strength steel
• Pedal plate material: High-strength steel
• Heel rest material: High-strength plastic
• Rudder rotation angle: ±30°
• Rudder travel distance: Up to 150 mm
• Pedal angle adjustment range: 0°–30°
• Brake pedal rotation angle: 0°–20°
• Centering force adjustment: Interchangeable springs
• Adjustable damper: Optional (sold separately)

In the Box

• MOZA MRP Rudder Pedals × 1
• Data cable × 1
• Tool kit × 1
• User manual × 1
