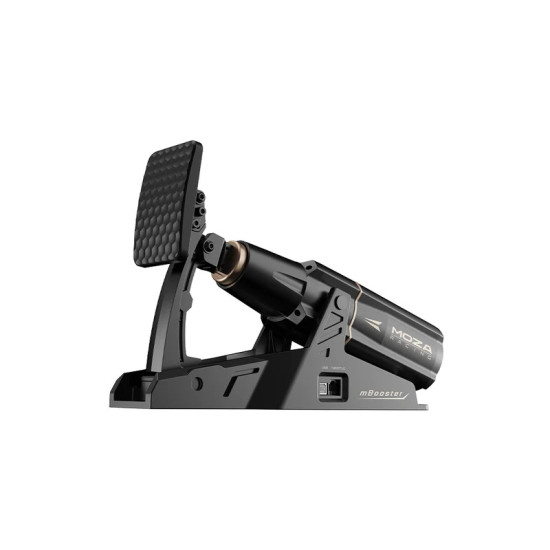

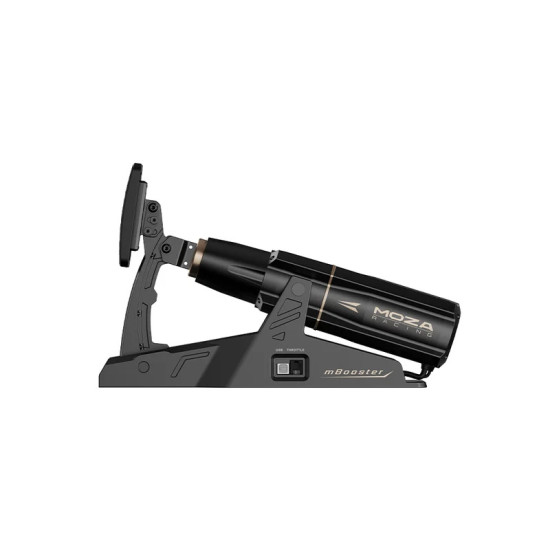

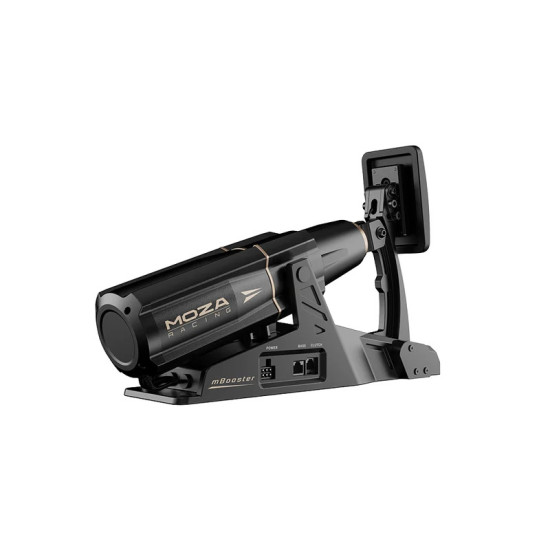

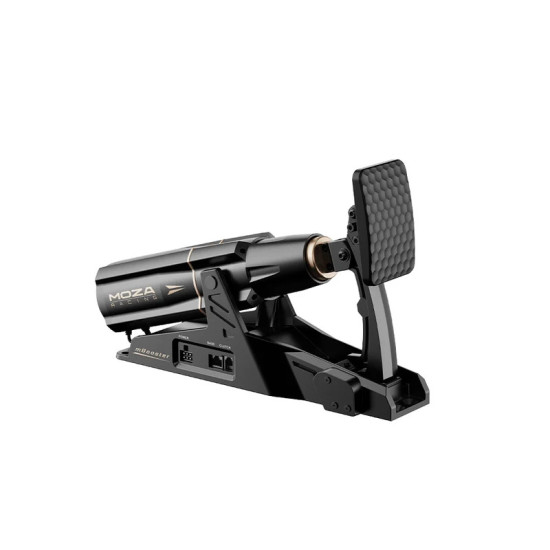

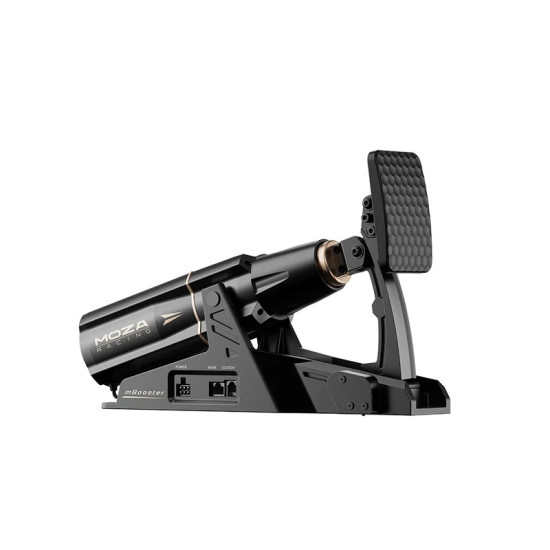

MOZA Racing RS076 mBooster Active Pedal

The MOZA Racing RS076 mBooster Active Pedal uses an active force feedback system with a motor-driven mechanism to simulate different sensations during braking, acceleration, and driving. Through MOZA Pit House software, the pedal can be configured as a throttle, brake, or clutch with a single click, while its response can be adjusted without mechanical modifications.

Key Features

• Active force feedback with high motor torque density
• Dual pressure sensors with a load capacity of up to 200 kg
• 15-bit angle sensor
• 21-bit high-resolution magnetic encoder
• Simulation of ABS, traction control, engine vibration, and G-forces
• Adjustable pedal feel through MOZA Pit House software
• Can be used as a throttle, brake, or clutch
• Quiet operation with noise levels of up to 44 dB
• Compatible with CRP2 pedals

Technical Specifications

• Material: Aluminum alloy
• Pressure sensor range: 0–200 kg
• Brake sensor: Pressure sensor and angle sensor
• Angle sensor resolution: 15-bit (32,768 PPR)
• Maximum power: 270 W
• Input voltage: 110–220 V AC → 48 V DC
• Travel adjustment: 0–25°
• Angle adjustment: 0–15°
• Curve adjustment: Yes
• Real-time pedal output display: Adjustable
• Pressure activation point: Adjustable
• Pedal surface: Biomimetic curved design
• Software: MOZA Pit House
• Compatibility: MOZA CRP2 Pedals
